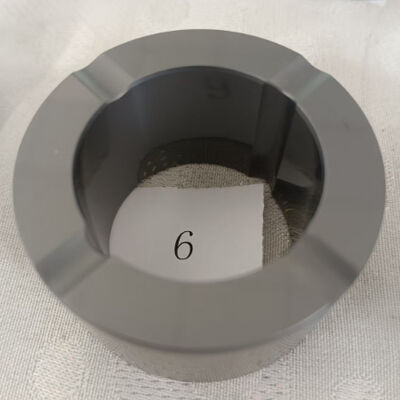

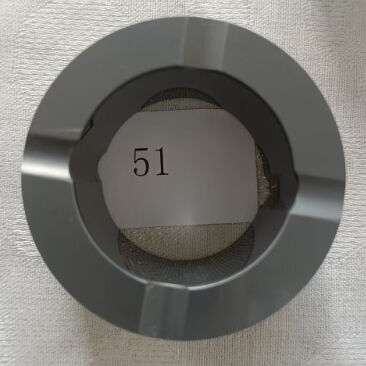

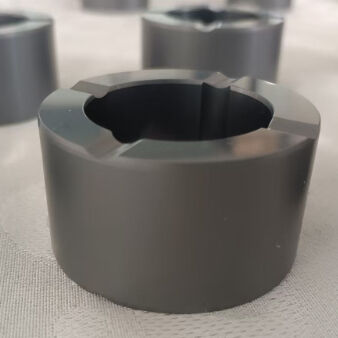

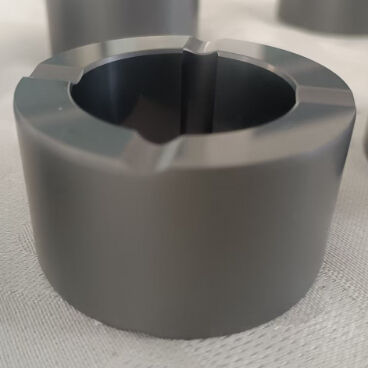

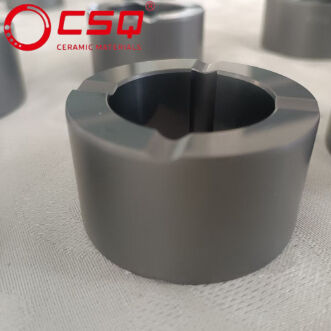

Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps

  • Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps
  • Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps
  • Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps
  • Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps
  • Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps
Τόπος καταγωγής Κίνα
Μάρκα CSQ
Πιστοποίηση FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Αριθμό μοντέλου προσαρμοσμένα προϊόντα
Ποσότητα παραγγελίας min 20-50 τεμ.
Τιμή negotiable
Συσκευασία λεπτομέρειες Αφρός+Χαρτοκιβώτιο
Χρόνος παράδοσης 20-45 εργάσιμες ημέρες
Όροι πληρωμής T/T
Δυνατότητα προσφοράς 2000 τμχ το μήνα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Ονομα Προσαρμοσμένο κεραμικό ρουλεμάν με μανίκι Κατηγορία Κεραμικό συρόμενο ρουλεμάν
Υλικό Ανεξάρτητα από το πυροσυσσωματωμένο καρβίδιο/ζιρκόνια χωρίς πίεση Μέγεθος Προσαρμοσμένο, σύμφωνα με τα σχέδια
Εφαρμογή Γοβάκια Πακέτο Αφρός+Χαρτοκιβώτιο
Ποιότητα Υψηλή ακρίβεια, μεγάλη διάρκεια ζωής, OEM Serive Προσδιορισμός Τυπικό μέγεθος και προσαρμοσμένο
Επισημαίνω

1650°C Max Temperature Silicon Carbide Sliding Bearing Sleeve

,

Pressureless Sintered Ceramic Sliding Bearing

,

Customized Size SSIC Bearing Sleeve
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Custom Silicon Carbide Sliding Bearing Sleeve for Pumps
Premium Performance Ceramic Bearing Solution

Our custom silicon carbide sliding bearing sleeves represent the pinnacle of high-performance ceramic components engineered for extreme operating conditions. Manufactured from premium-grade SiC material, these sleeves deliver exceptional hardness, superior thermal conductivity, and outstanding chemical resistance, making them ideal for corrosive, high-temperature, and high-wear industrial applications.

Technical Specifications
Maximum Operating Temperature Up to 1650°C
Material Density 3.15-3.18 g/cm³
Thermal Expansion Coefficient 4.0 × 10⁻⁶/°C
Thermal Conductivity 120 W/m·K
Material Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Resistance Superior stability against acids, alkalis, and hydrofluoric acid corrosion
Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps 0
Ceramic Bearing Advantages
High Temperature Performance

Maintains mechanical stability at elevated temperatures up to 1650°C

Thermal Stability

Minimal clearance variation across temperature fluctuations due to low thermal expansion

Anti-Bite Performance

Reduced thermal deformation improves resistance to seizing and sticking

Self-Lubricating

Operates without oil lubrication, suitable for vacuum and dry environments

Chemical Resistance

Withstands corrosive environments including acids, alkalis, and salts

Electrical Insulation

Non-conductive material prevents electrical arcing and static electricity

Non-Magnetic Properties

Ideal for magnetic-sensitive applications with reduced abrasive wear

Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps 1
Industrial Applications

Silicon carbide bearing sleeves serve critical roles across multiple industries including:

  • Chemical processing pump systems
  • Refinery mechanical seals
  • Semiconductor manufacturing equipment
  • Aerospace propulsion systems
  • Marine engineering applications
  • Petroleum and power generation
  • Automotive and textile machinery
  • Medical instruments and scientific research
Manufacturing Excellence

With three manufacturing facilities across China and over 40 years of specialized experience since 1982, we maintain advanced pressing, sintering, and precision processing capabilities. Our ZXSQ and CSQ branded products are backed by eleven utility model patents and extensive expertise in supplying premium silicon carbide components to global partners, including long-standing collaborations with industry leaders like Germany's Witte.

Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps 2 Custom Silicon Carbide Sliding Bearing Sleeve With 1650°C Max Temperature Pressureless Sintered For Pumps 3
Our Service Advantages
  • Complimentary sample bearings available
  • ISO standard compliance
  • Ready inventory for immediate shipment
  • Small order quantities accepted
  • Complete OEM bearing services
  • Custom bearing solutions from drawings or samples
  • Competitive factory-direct pricing
Frequently Asked Questions
Who are we?
We are a Beijing-based factory with over 40 years of ceramic bearing manufacturing experience, maintaining cooperative relationships with domestic and international companies.
How do we guarantee quality?
We implement rigorous quality control including pre-production sampling, strict adherence to specifications, precision inspection equipment, and secure double-layer packaging to ensure product integrity.
What products do we offer?
Our product range includes ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic bearings, linear bearings, and various ceramic ball components.
Why choose us over other suppliers?
As an integrated manufacturing and trading company with three factories, we combine modern production technology with stringent quality control to deliver superior products with reliable delivery schedules.
What services do we provide?
We offer high-quality products, comprehensive customization services tailored to user requirements, and sample provision for customer validation.
Partnership and Collaboration

We maintain strategic partnerships with raw material suppliers to ensure consistent product quality and pricing stability. Our customer-focused approach drives us to deliver exceptional products and comprehensive after-sales service, creating lasting value as your trusted manufacturing partner. We welcome the opportunity to discuss your specific requirements and explore collaborative opportunities.
